Some engines don’t produce enough vacuum to operate servo assisted brakes and other vacuum dependant system to their optimum. This is particularly true of engines that have high lift, long duration camshafts.
This system generates vacuum independently from the engine. This means that the vacuum supply is kept constant regardless of engine RPM and load. This constant depression results in a consistent weighting to the brake pedal in all conditions. The increased vacuum levels that can be achieved with this system can allow less pedal force to be exerted by the driver to achieve the same or more retardation on the brakes.
This system utilises the UP5.0 Hella vacuum pump to achieve maximum vacuum quickly and efficiently. The pump is of a vane type construction and is therefore much quieter in operation than an equivalent sized piston pump.
The pump is controlled by the adjustable pressure switch and a micro relay. The pump system is protected by a 20 Amp circuit breaker.
This system has been designed to be universal and can provide enough vacuum for up to two servos. It can be used on any vehicle that utilises a pneumatic servo to assist braking including hybrid and fully electric vehicles. It is capable of replacing the original vacuum system on a vehicle or can be used to supplement the original system.
Click here to purchase on eBay
Download Plumbing & Wiring Diagram
Download UP vacuum pumps data
Download Frequently Asked Questions
12V VACUUM PUMP SILVER KIT

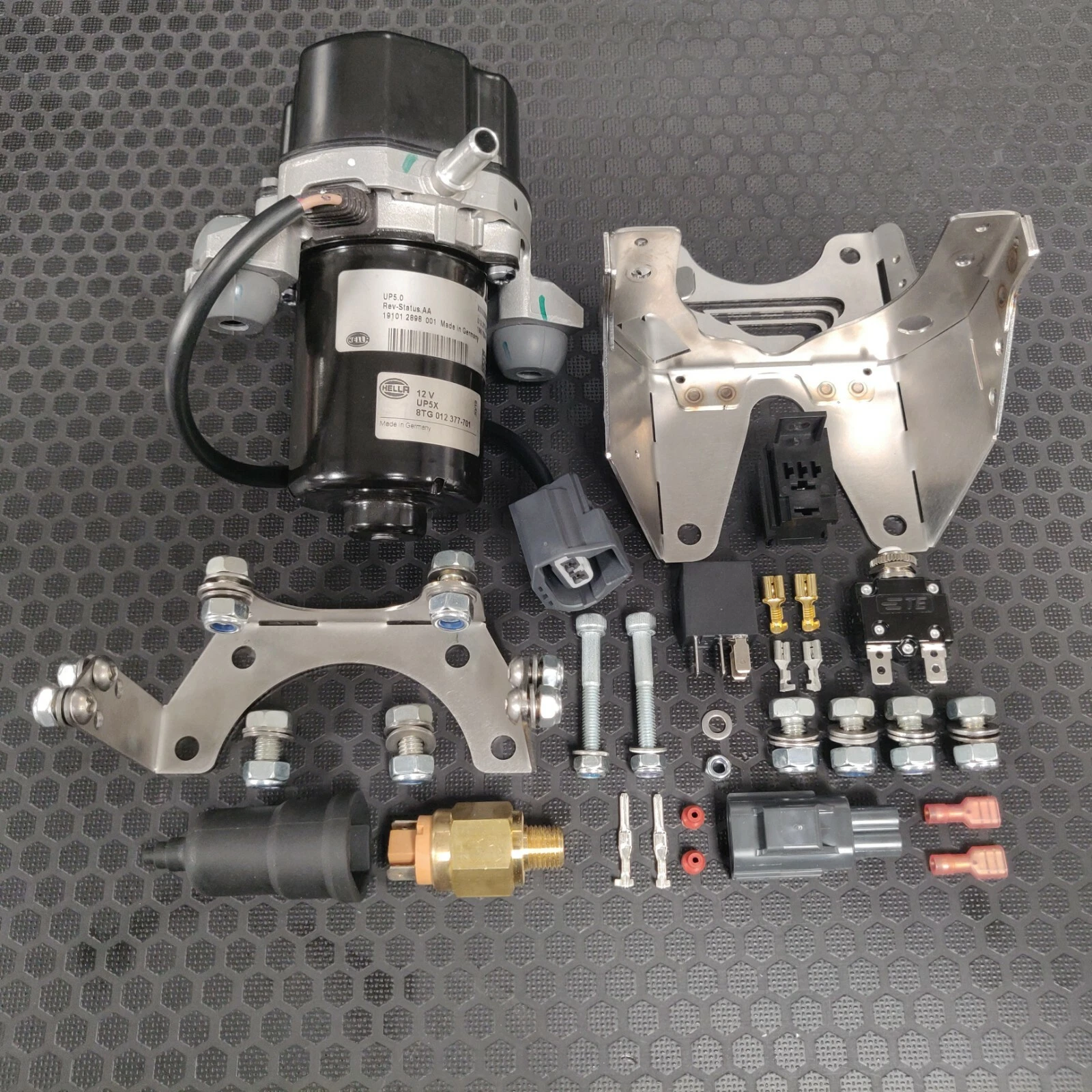

COMPRISING OF THE FOLLOWING PARTS:
Hella UP 5.0 Vacuum Pump
8TG012.377-701
This is the largest vacuum pump produced by Hella.
It was designed for the Aston Martin DB11 but is now available in universal form.
This pump is quieter than the UP32 measuring only 73db
Operating voltage between 10V -16V
Maximum vacuum 90% below ambient (UP32 = 86%)
Pressure build up time
50% of ambient pressure in ≤ 2.4 sec
70% of ambient pressure in ≤ 4.4 sec
Ambient pressure 13V Test volume 4L
Average Current draw < 15 Amps
Pump operating time ≥ 1500 hours
THIS IS A GENUINE HELLA VACUUM PUMP BOUGHT DIRECTLY FROM HELLA UK – NOT CHINA!
Hella UP 5.0 electrical connector
2 way high current plug to complete a professional installation
Adjustable Vacuum Switch
Normally Closed
Adjustable between -200 to -900 mbar
Max switched voltage 48V
Max switched current 0.5A
1/4 BSPT thread
15/16 Spanner size
2 X Spade terminals
Turning the adjuster screw anti clockwise increases vacuum
Adjustable Vacuum Switch Rubber Boot
Use this rubber boot to protect the vacuum switch
from water & dust ingress
HELLA VACUUM PUMP BRACKET – NEW DESIGN
304 Stainless Steel brackets allow the pump to be base mounted or vertically mounted.
Nuts & bolts are provided for both mounting options.
An M5 stud is provided for mounting a micro relay base.
2 x M6 bolts with Nyloc nuts for mounting the pump
The bracket has 4 x 8mm dia mounting holes
All fasteners are made from stainless steel
12V MICRO RELAY WITH DIODE & BASE
Diode protects circuits from back EMF
Relay current rating 25 Amps
Micro relay Base
Terminals
M5 Nyloc nut & washer for mounting on Vacuum pump bracket
20 AMP CIRCUIT BREAKER
The thermal circuit breaker provides protection for the pump
DIMENSIONS
Height – 145mm
Width – 126MM
Depth – 122mm
PLEASE SEE THE PICTURE FOR BASIC DIMENSIONS
BASIC PLUMBING AND WIRING INSTRUCTIONS ARE ALSO INCLUDED.
NOT INCLUDED IN THIS KIT:
· Switch mounting tee piece
· Non return valve
WARNING
The pump should never be running continuously.
Click here to purchase on eBay
Download Plumbing & Wiring Diagram
Download UP vacuum pumps data
IT IS THE RESPONSIBILITY OF THE PERSON INSTALLING ANY BRAKE COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THE COMPONENT OR KIT FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE DANGEROUS. IF YOU ARE NOT SURE, GET HELP OR RETURN THE PRODUCT. YOU MAY OBTAIN ADDITIONAL INFORMATION AND TECHNICAL SUPPORT BY CALLING TAYLOR AUTOMOTIVE AT 01825 873578, OR EMAIL US AT GEOFF@TAYLOR-AUTOMOTIVE.CO.UK. USE OF TAYLOR AUTOMOTIVE TECHNICAL SUPPORT DOES NOT GUARANTEE PROPER INSTALLATION. YOU, OR THE PERSON WHO DOES THE INSTALLATION MUST KNOW HOW TO PROPERLY USE THIS PRODUCT. IT IS NOT POSSIBLE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL THE ISSUES THAT MIGHT ARISE IN YOUR INSTALLATION. RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR
