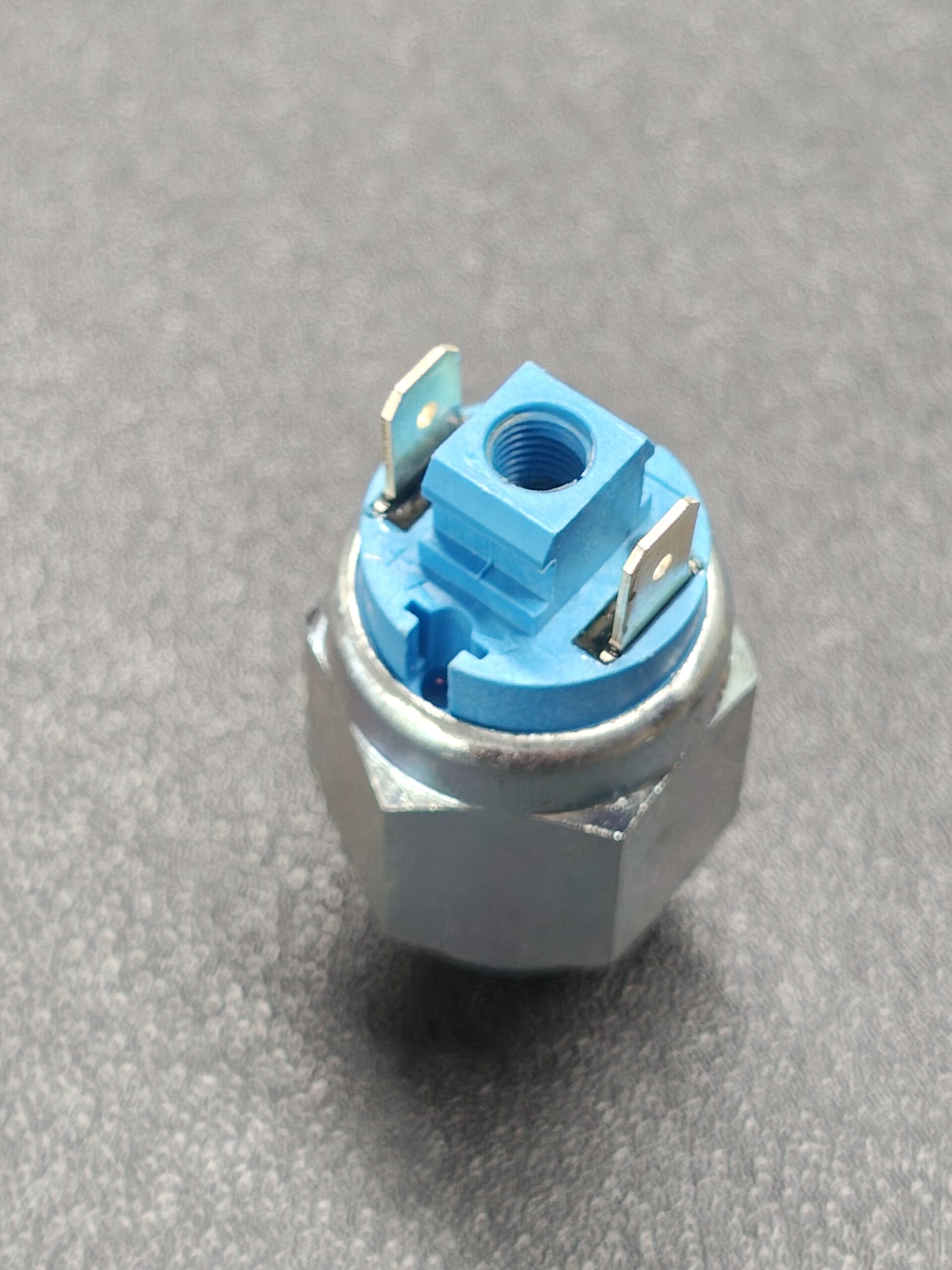

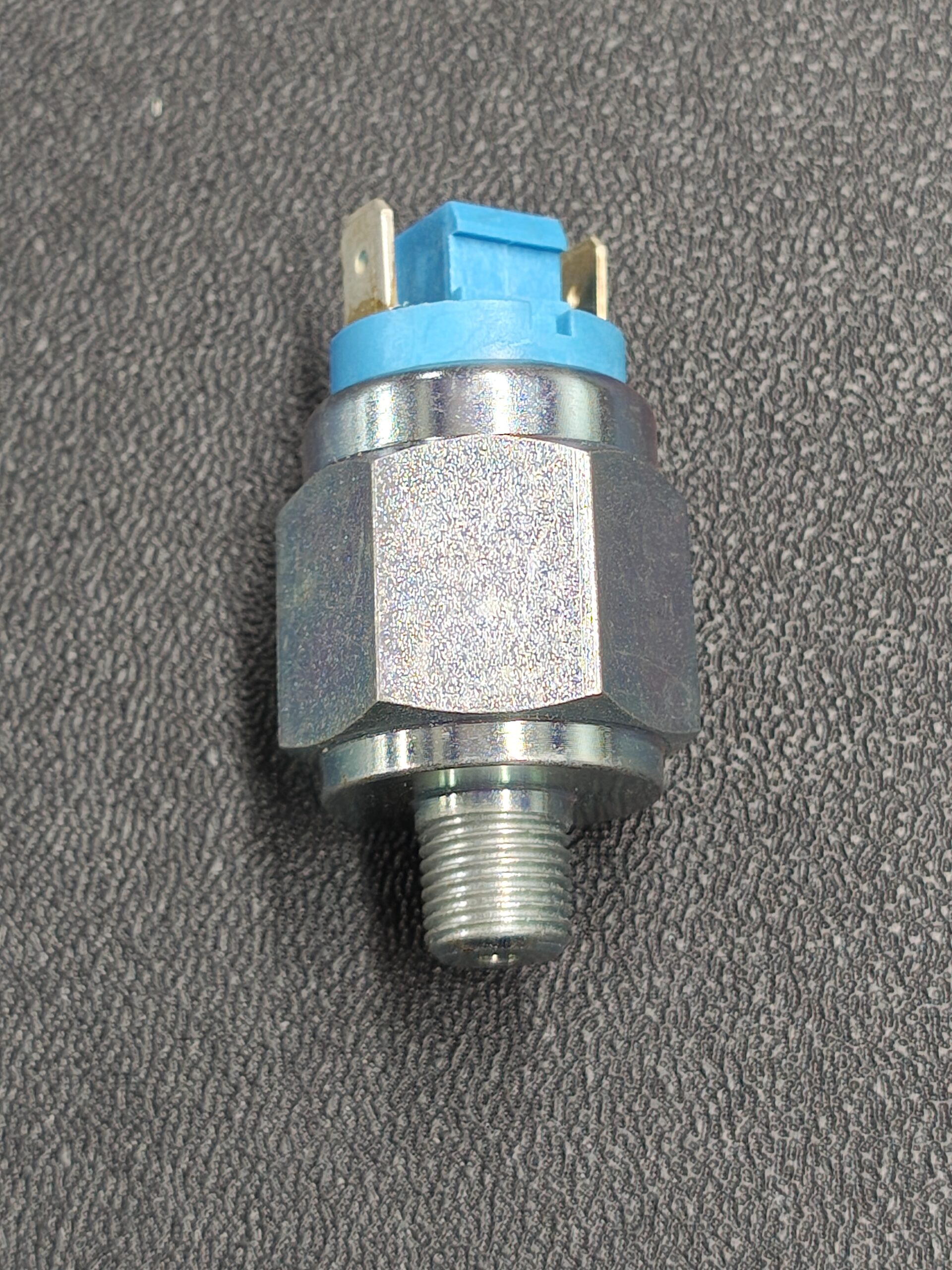

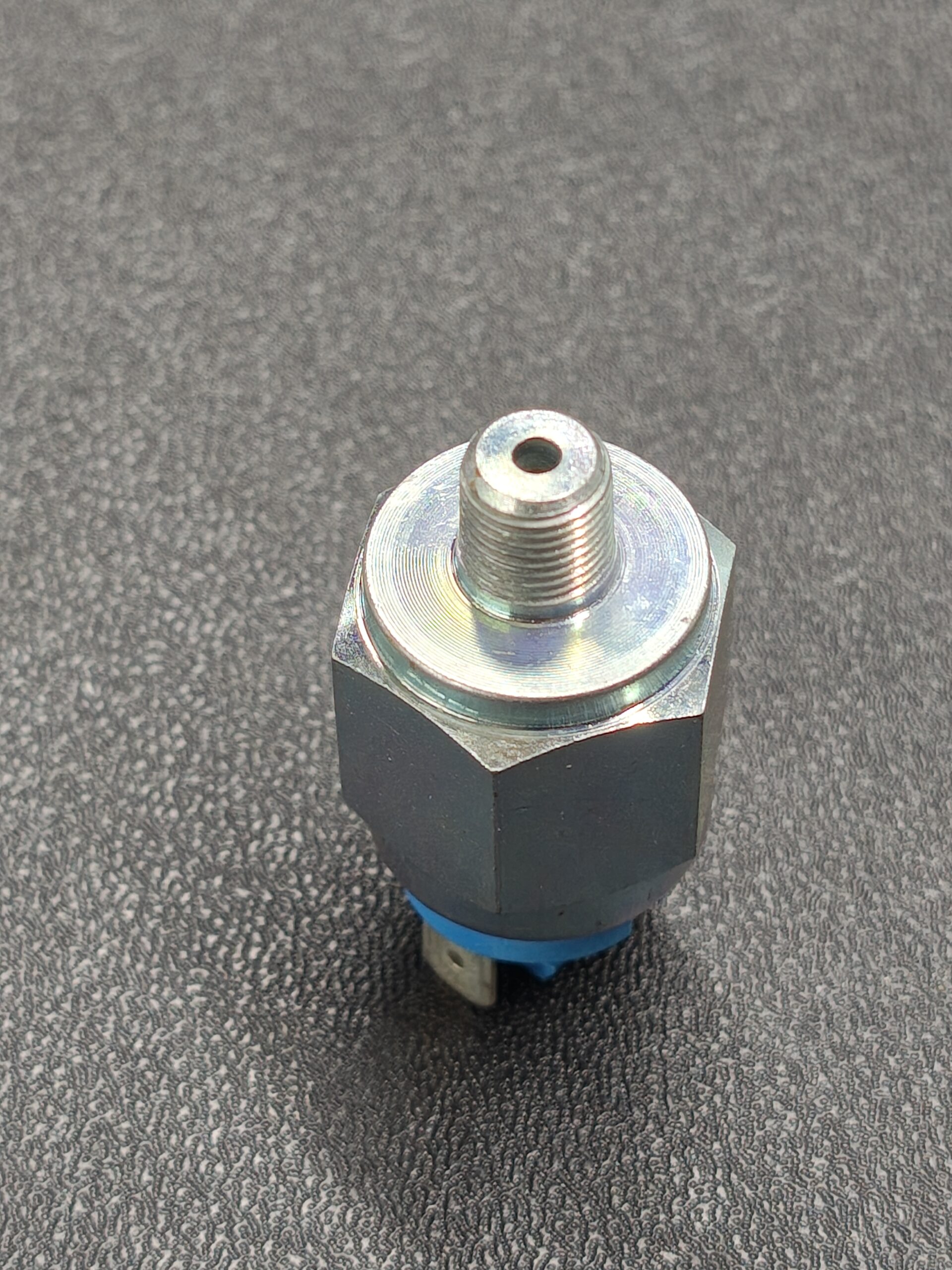

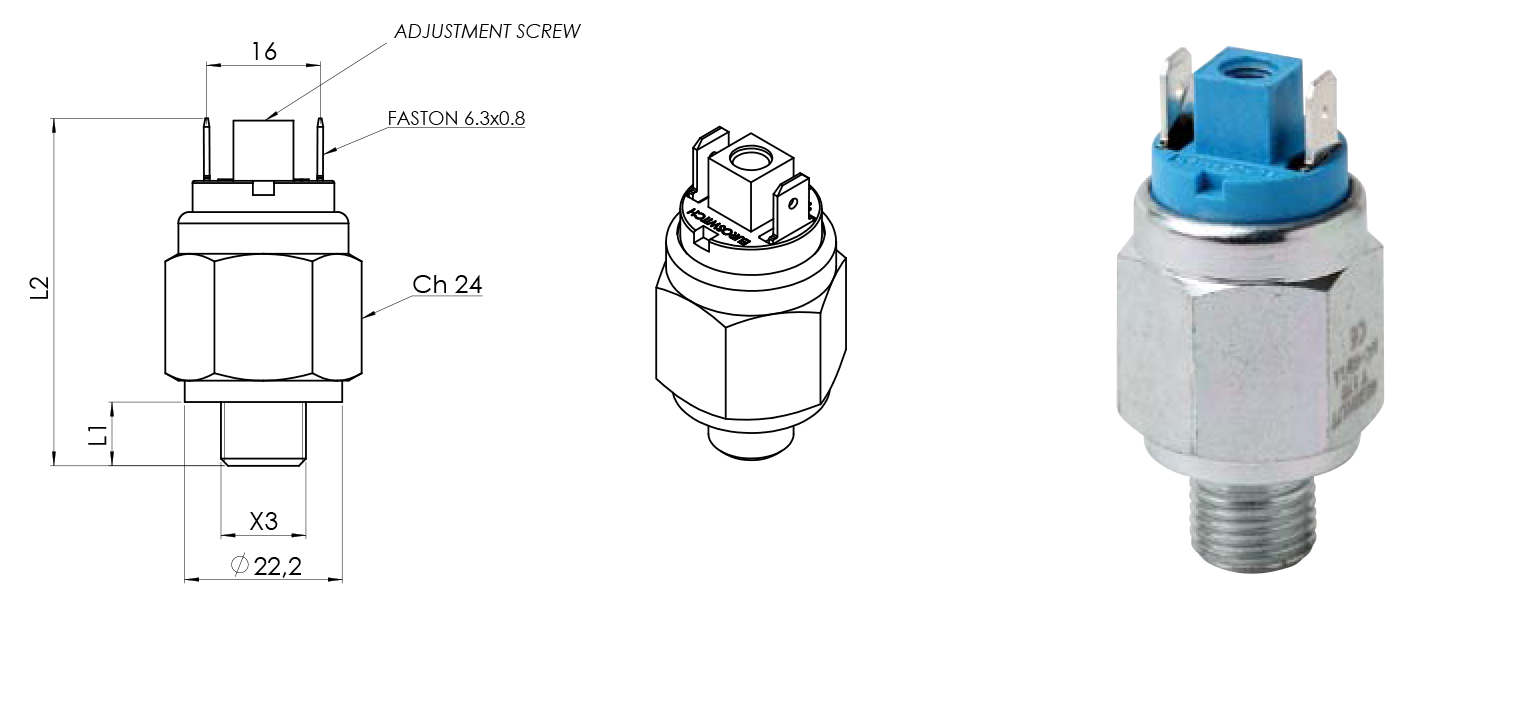

Adjustable Pressure Switch
Ideal for use to switch an oil pressure warning light
Normally Closed
Adjustable between 0.2 – 2 bar (3 – 29 Psi)
Max over pressure 300 Bar (4351 Psi)
Max switched voltage 48V
Max switched current 0.5A
Max fluid temperature 120°C
Electrical contact material – Silver AGNi
Electrical connection 2 X 6.3mm Spade
Mechanical working life 10,000,000 operations
Zinc coated steel body
FKM (Viton) Diaphragm – excellent chemical resistance
1/8 BSPT thread
15/16 Spanner size

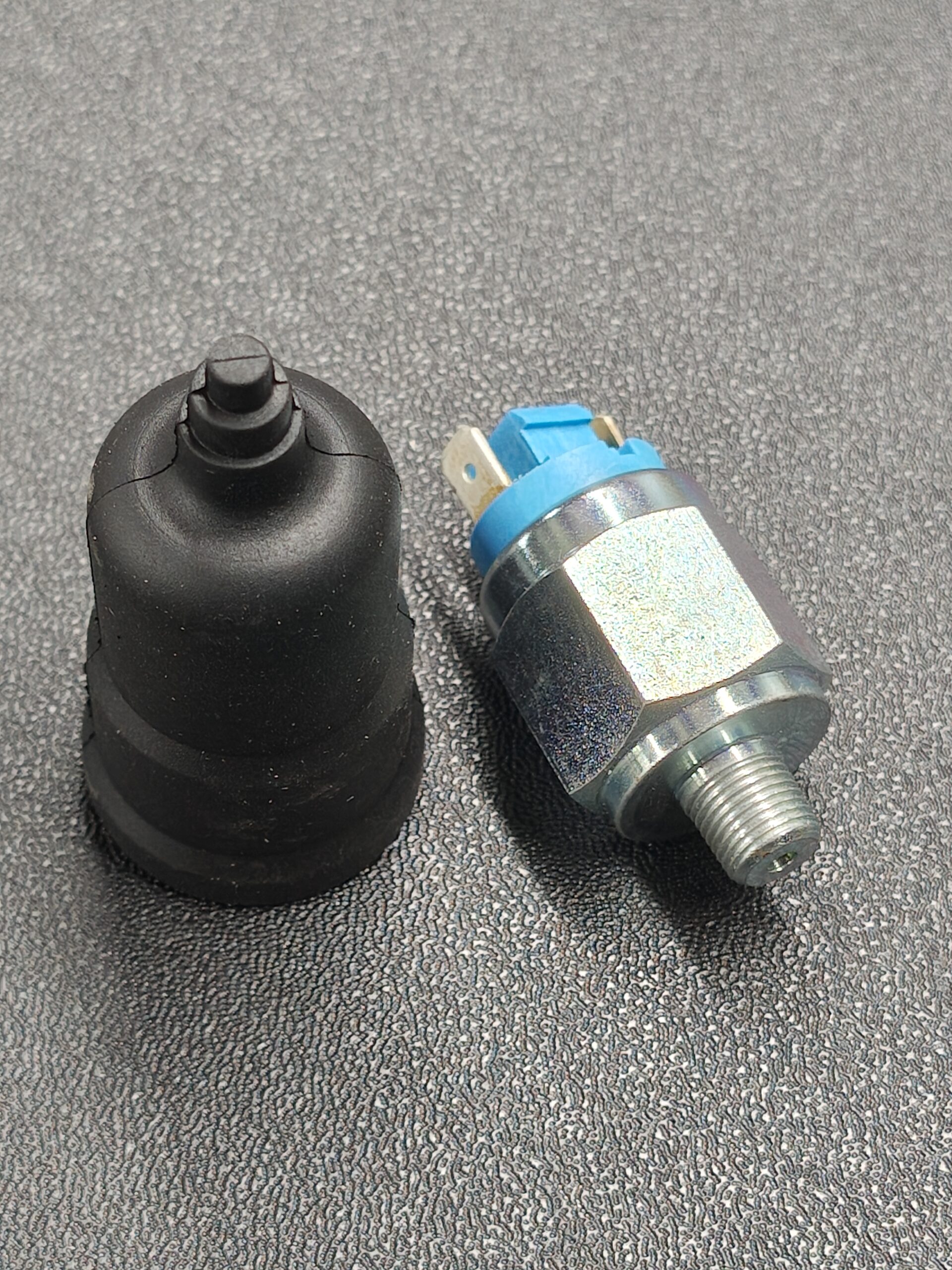

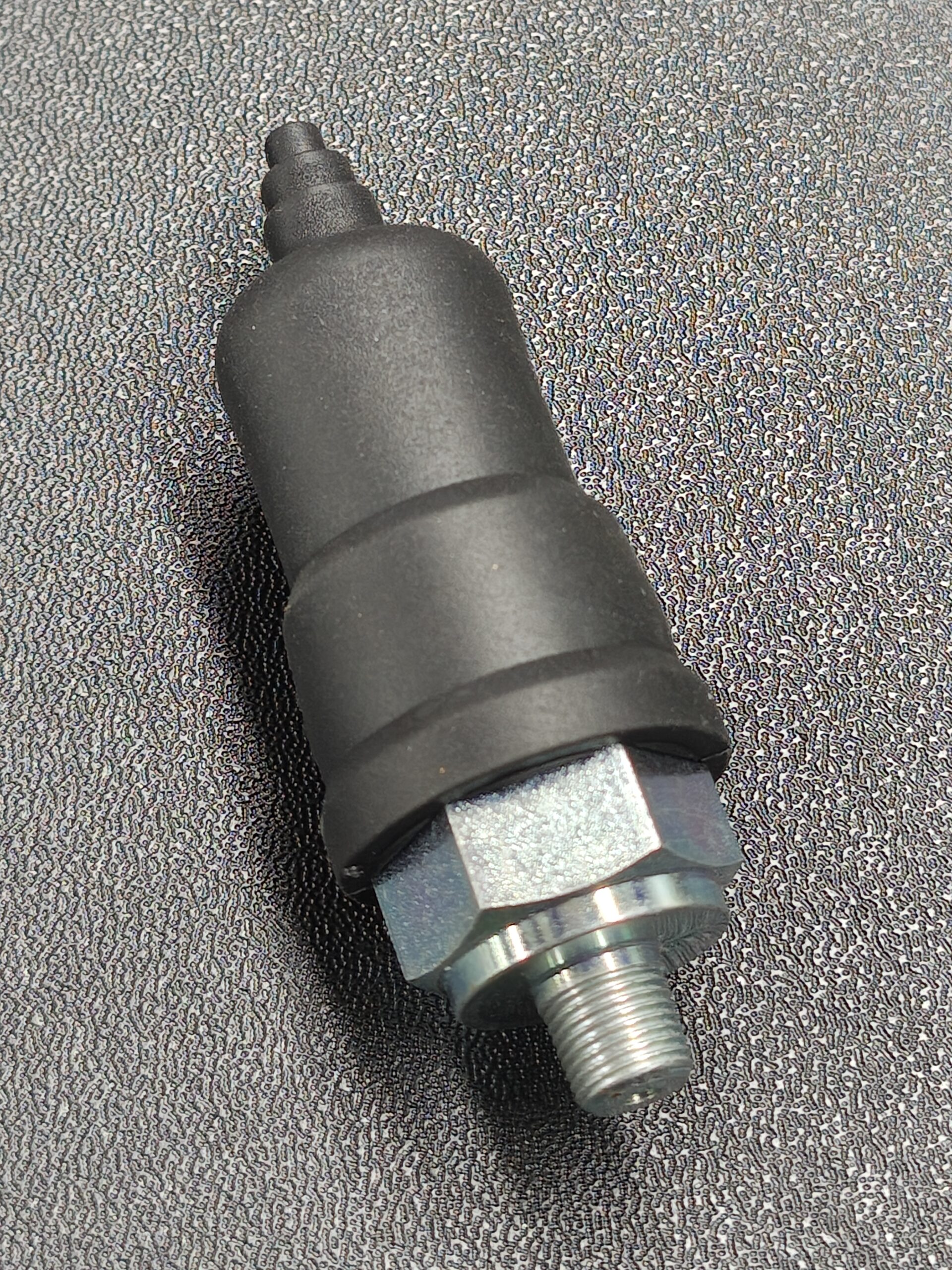

A protective rubber boot for this switch is available in our other listings
THIS SWITCH IS NOT PRESET
THIS SWITCH WAS MADE IN ITALY – NOT CHINA!
