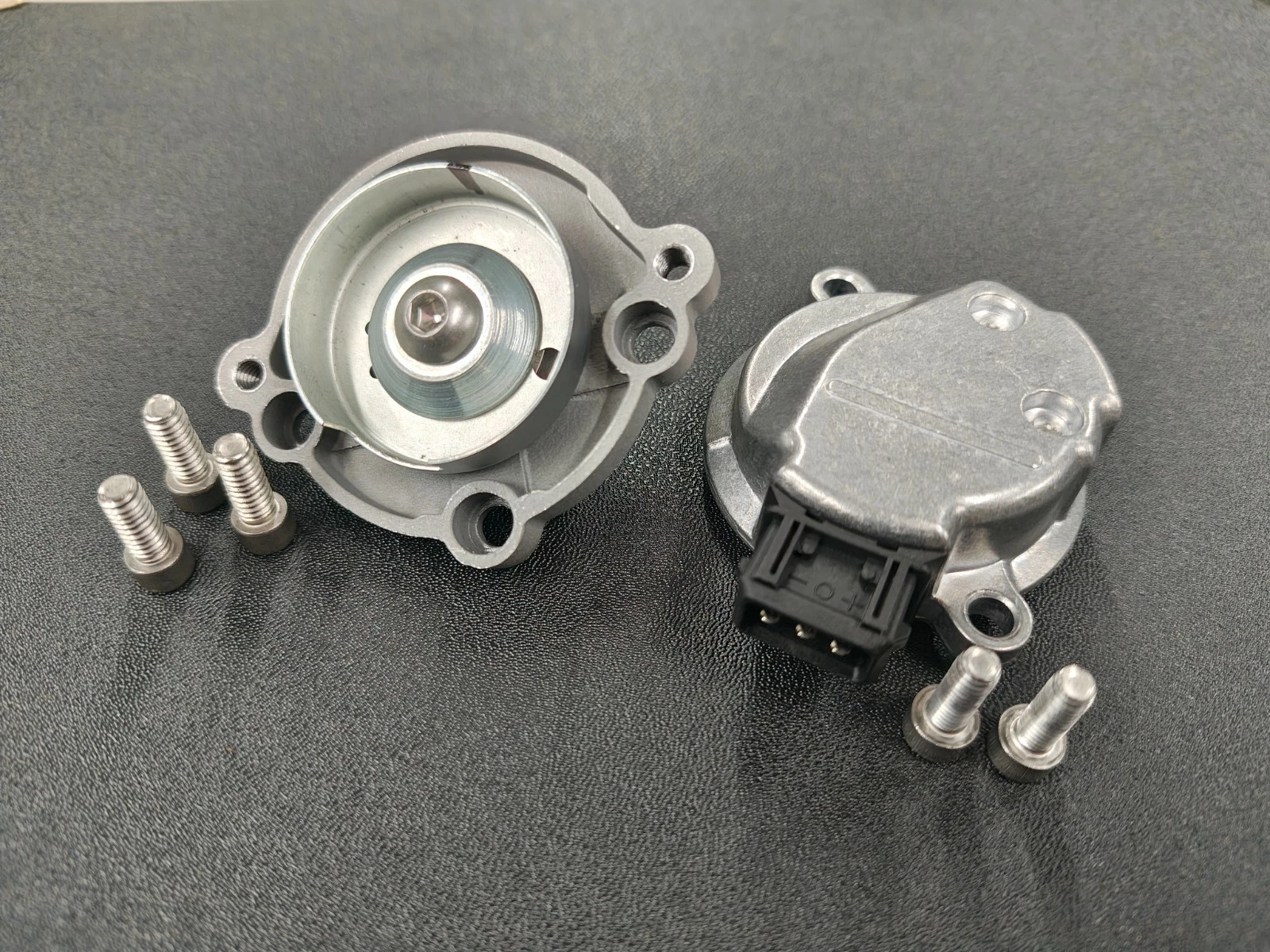

Jaguar XK Engine Cam Position Sensor – Fuel Injection, E Type

Jaguar XK Camshaft position sensor – fuel injection

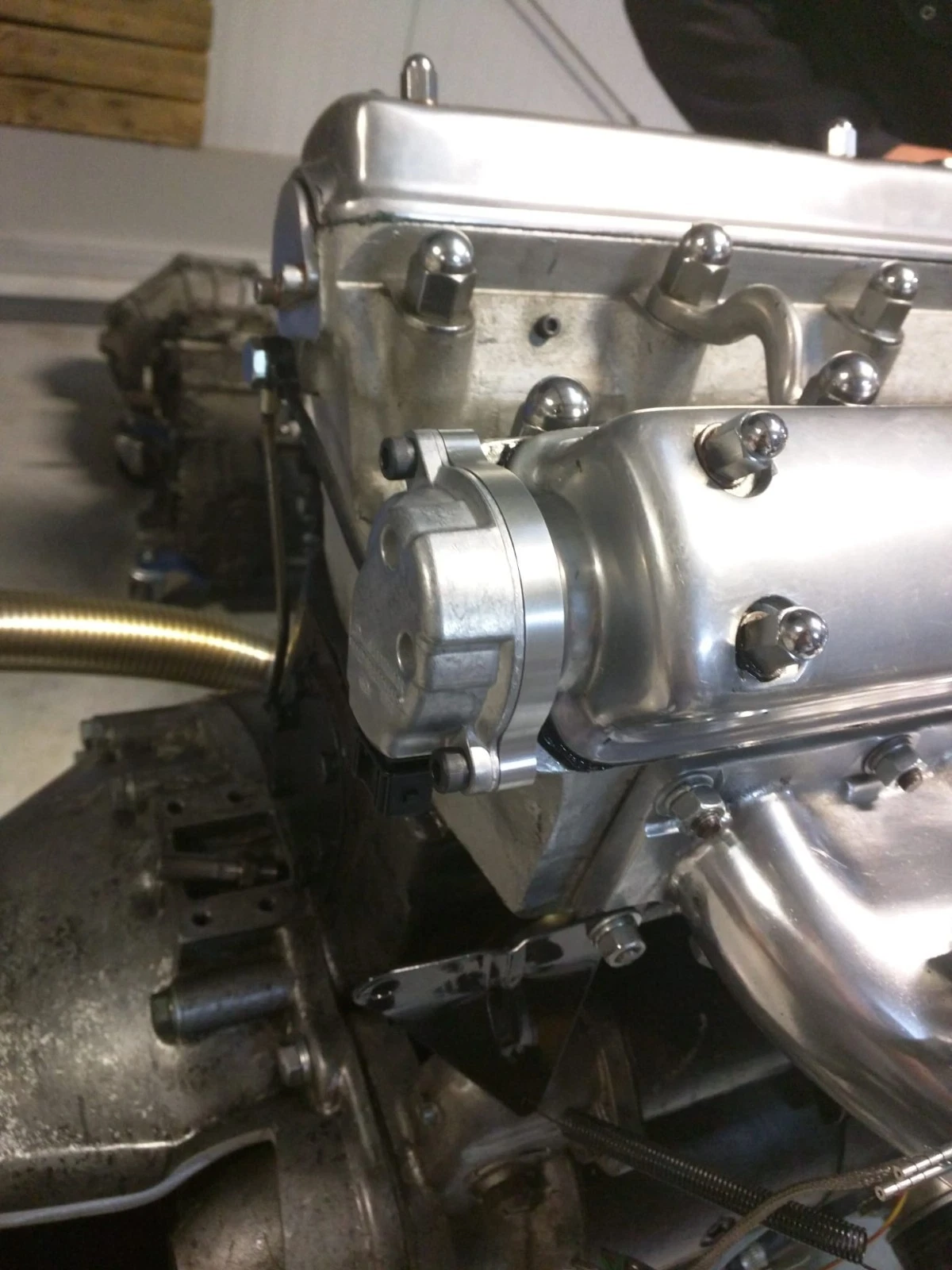

This unit is designed to fit in place of the rev counter generator on the back of XK engines and is for use with modern standalone ECU’s.

This sensor will allow the ECU to read camshaft position which in turn will allow the use of fully sequential fuel injection.

This sensor is compatible with most aftermarket standalone ECUs:

•  Emerald
•  Life Racing
• Pectal
• Motec
• DTA
• Omex
• Haltech
• Cosworth

And many more….

Specification

Single pulse – Hella digital sensor

Aluminum housing with bronze bearing and stainless steel sensor shaft

All bolts are A4 stainless steel

Electrical connector: Junior Power Timer 3 way female

Instructions supplied

We also manufacture other injection parts for the XK engine and  E Types

• Crankshaft sensor / damper assembly
• High pressure fuel systems for straight 6 and V12 E Types
• Air intake box for Webers / Throttle bodies on an XK engine
•  Life Racing ECU and MSD mounting brackets

Made in England
