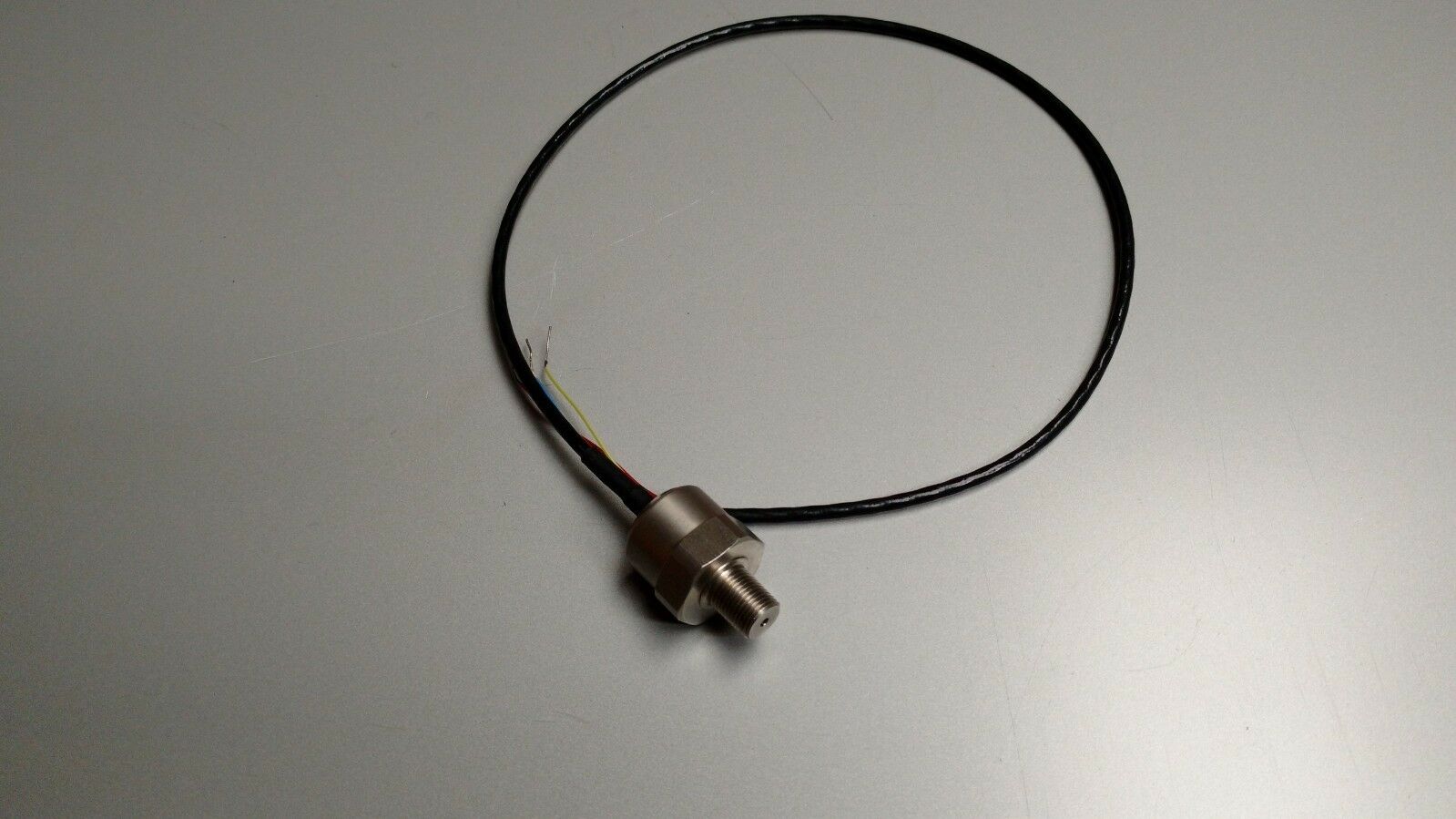

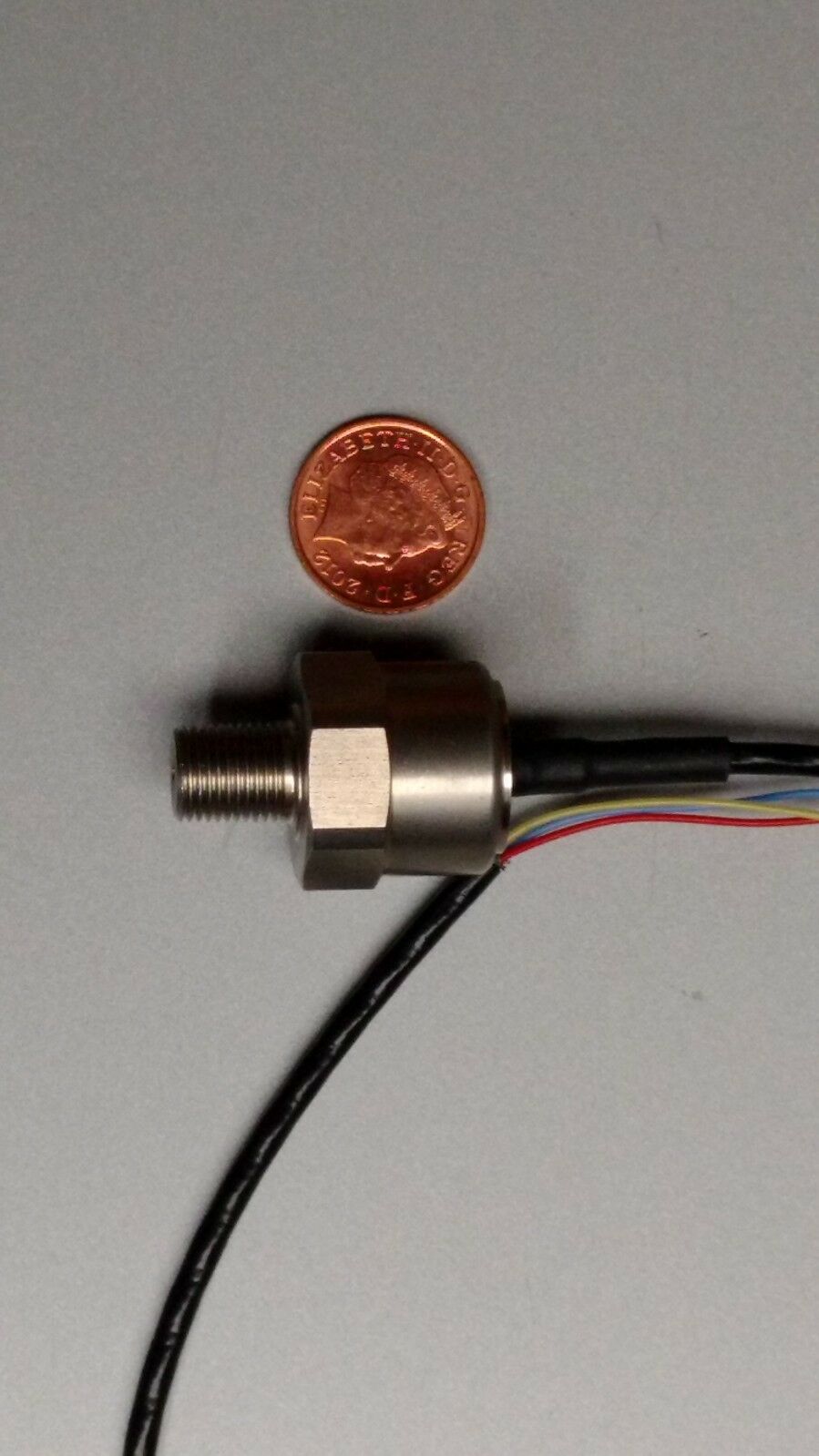

KA SENSORS PRESSURE TRANSDUCER
Motorsport/Automotive pressure sensor
The ASL series of standard pressure transducers have been designed for the detection of fluid and air pressures in demanding motorsport and automotive applications.
These are ideal for high precision data acquisition or control systems. The transducers can be installed directly onto vehicles or as part of a test stand or dyno.
They offer a high level of reliability and endurance, they are protected against the high vibration, shock and high temperatures found in motorsport.
Industry standard 3-wire electrical connections allow configuration with most common ECU’s and data logging systems.
The ASL series are race proven in many formula around the world and offer a reliable and cost effective solution for professional engineers.
1/8 NPT thread
0-10 bar range
0.5 to 4.5V output
Supply voltage 5Vdc
500mm flying leads
IP67 rated
Data sheet provided with wiring information and offsets
Ideal for use as:
Oil Pressure sensor
Fuel pressure sensor
Air pressure sensor
Coolant pressure
KA Sensors part number ASL-S1002-4A2-ABV-050-000
