Hella UP 5.0 Vacuum Pump
8TG012.377-701
This is the largest vacuum pump produced by Hella.
It was designed for the Aston Martin DB11 but is now available in universal form.
This pump is quieter than the UP32 measuring only 73db
Operating voltage between 10V -16V
Maximum vacuum 90% below ambient (UP32 = 86%)
Pressure build up time
50% of ambient pressure in ≤ 2.4 sec
70% of ambient pressure in ≤ 4.4 sec
Ambient pressure 13V Test volume 4L
Average Current draw < 15 Amps
Pump operating time ≥ 1500 hours
Weight 1.6 Kg
We get these pumps direct from Hella UK – Not China!
see our other listings for accessories to be used with this pump
Adjustable vacuum switch
Vacuum switch rubber boot
Relay with diode kit

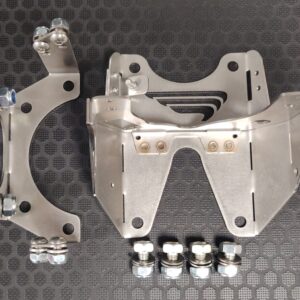

UP32 Stainless steel bracket
